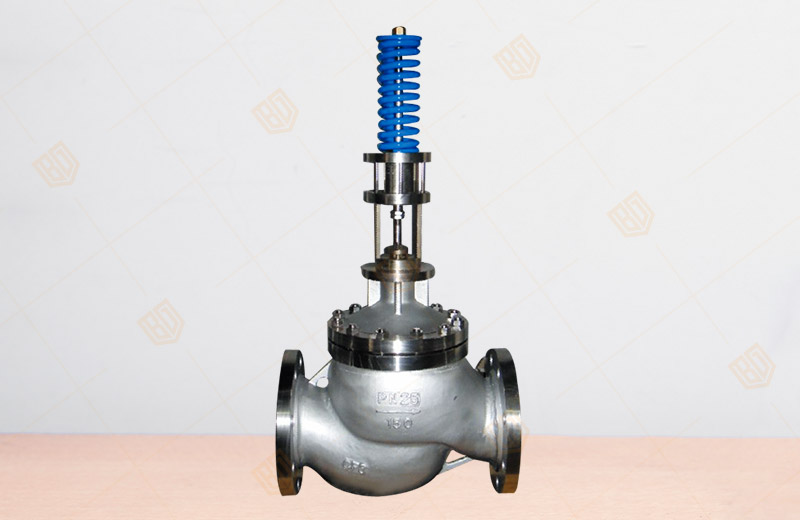

ZZYP Self-operated Regulating Valve

Product overview

Product model: ZZYP
Nominal diameter: DN20~200mm
Nominal pressure: PN1.6~6.4MPa
Operating temperature: liquid ≤140;Gas 80 or less;Condenser and heat sink ≤350
Applicable medium: gas, steam, low viscosity liquid
Design standard: GB/T17213
Inspection standard: GB/T4213
Flange standard: JIS B220, JB/T79, ANSI B16.5-1981, GB/T9113, HG20594-97, HG20618-97, etc

ZZYP Self-operated Regulating Valve product details

ZZYP Self-operated Regulating Valve Overview
ZZYP Self-operated Regulating Valve produced and sold by Baigang valve group is a need without external energy, the use of the controlled medium itself as a power source, the introduction of the executive chamber~produce thrust~control the movement of throttling components~achieve automatic adjustment. With measurement, implementation, control of the integrated features. Available in no gas, no electricity place. Widely used in petroleum, chemical, power plants, light industry, printing and dyeing industry, automatic control system for a variety of equipment, gas, liquid and steam media deceleration pressure, regulator (for the valve pressure regulator) relief pressure, Pressure control) automatic control. According~the user's different conditions can choose different spool structure and different implementing agencies, in order~achieve the best control effect.

ZZYP Self-operated Regulating Valve model

category	model	category	model
Single-seat pressure-type	ZZYP-16 ~ 64B	Single-seat pressure-type	ZZYP-16 ~ 64K
Double-seat pressure-type closure	ZZYN-16 ~ 64B	Double-seat pressure-type closure	ZZYN-16 ~ 64K
Sleeve pressure closed type	ZZYM-16 ~ 64B	Sleeve pressure closed type	ZZYM-16 ~ 64K

Pressure closed type: for the valve pressure regulator, when the valve pressure increases, the valve closed, in order~achieve decompression, the purpose of regulating.
Pressure type: for the valve pressure regulator, when the valve pressure increases, the valve opens, in order~achieve pressure relief, the purpose of regulating.
Self-pressure regulator valve actuator type

ZZYP Self-operated Regulating Valve main technical parameters

Nominal diameter DN (mm)	20				25	32	40	50	65	80	100	125	150	200
Seat diameter DN (mm)	10	12	15	20
Rated flow coefficient Kv	1.8	2.4	4.4	4	11	20	30	48	75	120	190	300	480	760
Allowable pressure difference (MPa)	2.5					2.0			1.6			1.0
Nominal pressure (MPa)	1.6 4.0 6.4
Inherent flow characteristics	Go ahead
Regulators~ensure the normal work of the smallest pressure difference P (MPa)	0.05
Pressure Segment Range (KPa)	15~50 40~80 60~100 80~140 120~80 160~220 200~260 240~300 280~350 330~400 380~450 430~500 480~560 540~620 600~700 680~800~780 900 800 ~ 1000 900 ~ 2000
Operating temperature ℃	Liquid ≤ 140; gas ≤ 80; with the condenser and heat sink ≤ 350
Suitable medium	Gas, steam, low viscosity liquid
Flange size, type	PN10,16, 40GB9113-88, PN64JB / T7-94; PN10,16 convex, PN40,64 convex or according~user requirements matching other standard types of flange (such as: ANSI, JIS, DIN and other standards)
Structure length	Press GB12221-89 standard
Actuator signal interface	Female thread M16 × 1.5

Note: The pressure of the sub-range can be designed according~user requirements.

ZZYP Self-operated Regulating Valve main performance indicators

control precision%		± 8
Allow leakage	Hard Seal (L / H)	Single-seat (Ⅳ grade): ≤10-4 Valve rated capacity: two-seater, sleeve (Ⅱ level), ≤5 × 10-3 × valve rated capacity
	Soft seal (ml / min)	DN (mm)
		20	25	32	40	50	65	80	100	125	150	200
		0.15		0.3		0.45	0.6	0.9	1.7	4.0		6.75

Self-pressure regulator can be equipped with accessories
condenser (for the media for steam occasions), heat sink and other

ZZYP Self-operated Regulating Valve Dimensions and weight

Nominal diameter (DN)			20	25	32	40	50	65	80	100	125	150	200
L		PN16,40	150	160	180	200	230	290	310	350	400	480	600
		PN64	230	230	260	260	300	340	380	430	500	550	650
B			233		332		373	522		673	980		1200
H	Pressure adjustment range (MPa)	15 ~ 140	475		520		540	710		780	840	880	915
		120 ~ 300	455		500		520	690		760	800	870	880
		280 ~ 500	450		490		510	680		750	790	860	870
		480 ~ 1000	445		480			670		740	780	850	860
		600 ~ 1500	445		570		600	820		890	950	950	1000
		1000 ~ 2500	445		570		600	820		890	950	950	1000
A	Pressure adjustment range (MPa)	15 ~ 140	φ282		φ308
		120 ~ 300	φ232
		280 ~ 1000	φ196					φ196			φ282
		600 ~ 2500	φ85	φ96
About weight (Kg)			26		37		42	72	90	114	130	144	180

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the ZZYP Self-operated Regulating Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.

Next：Pressure Regulating Valve

Previous：Self-operated Micro-pressure Regulating Valve
